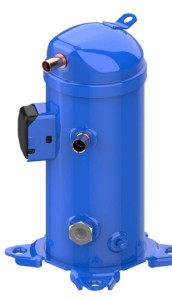

| Model : | MLZ015 , R404a |
| HP : | 2 |
| Piping size : | S 3/4″ , D 1/2″ |
Description
| Model | HP | Cooling capacity at 50 Hz | Power input* |
Current FULL Load (FLA) | LRA | COP | E.E.R. | Oil Charge POE Oil | Net Weight (with oil) | Piping Size “ Brazed “ | Hight | D | ||
| W | BTU | W | Amp | Amp | W/W | Btu/h /W | Litres | kg | Suction | Discharge | mm. | mm. | ||
| MLZ015 | 2 | 3300 | 11300 | 1.75 | 4.90 | 30.00 | 1.89 | 6.45 | 1.1 | 31 | 3/4” | 1/2” | 393 | 165 |
| MLZ019 | 3 | 4500 | 15400 | 2.16 | 6.70 | 45.00 | 2.06 | 7.03 | 1.1 | 31 | 3/4” | 1/2” | 393 | 165 |
| MLZ021 | 3 | 4700 | 16000 | 2.27 | 6.80 | 45.00 | 2.08 | 7.10 | 1.1 | 31 | 3/4” | 1/2” | 393 | 165 |
| MLZ026 | 3.5 | 5800 | 19800 | 2.9 | 8.3 | 45.0 | 2.00 | 6.83 | 1.1 | 31 | 3/4” | 1/2” | 393 | 165 |
| MLZ030 | 4 | 7100 | 24200 | 3.35 | 9.80 | 60.00 | 2.11 | 7.20 | 1.6 | 37 | 7/8” | 1/2” | 436 | 184 |
| MLZ038 | 5 | 8400 | 28700 | 3.86 | 11.70 | 70.00 | 2.19 | 7.47 | 1.6 | 37 | 7/8” | 1/2” | 436 | 184 |
| MLZ045 | 6 | 10200 | 34800 | 4.81 | 14.10 | 82.00 | 2.11 | 7.20 | 1.6 | 37 | 7/8” | 1/2” | 436 | 184 |
| MLZ048 | 7 | 11100 | 37900 | 5.17 | 15.30 | 87.00 | 2.14 | 7.30 | 1.6 | 37 | 7/8” | 3/4” | 436 | 184 |
| MLZ058 | 7.5 | 13000 | 44400 | 6.08 | 18.10 | 95.00 | 2.13 | 7.27 | 2.7 | 44 | 1-1/8” | 7/8” | 528 | 232 |
| MLZ066 | 9 | 15100 | 51500 | 7.01 | 20.30 | 110.00 | 2.15 | 7.34 | 2.7 | 45 | 1-1/8” | 7/8” | 528 | 232 |
| MLZ076 | 10 | 17300 | 59000 | 7.93 | 23.90 | 140.00 | 2.18 | 7.44 | 2.7 | 45 | 1-1/8” | 7/8” | 528 | 232 |
| EN 12900 MBP: Evaporating temperature: -10°C; Condensing temperature: 45°C; Subcooling 0K; Superheat 10K | ||||||||||||||
| COOLING CAPACITY IN W / 40°C CONDENSING TEMPERATURE | EN12900 | |||||||||||
| MLZ Models |
-25°C | -20°C | -15°C | -10°C | -5°C | 0°C | 5°C | 10°C | Cooling capacity W | Power input kW | COP W/W |
Sound power dB(A) |
| MLZ015 | 1,660 | 2,180 | 2,770 | 3,450 | 4,240 | 5,150 | 6210 | 7420 | 3,080 | 1.75 | 1.76 | 65 |
| MLZ019 | 2,360 | 2,990 | 3,730 | 4,580 | 5,570 | 6,730 | 8090 | 9670 | 4,150 | 2.16 | 1.93 | 65 |
| MLZ021* | 2,510 | 3,180 | 3,950 | 4,850 | 5,910 | 7,150 | 8600 | 10260 | 4,410 | 2.27 | 1.94 | 65 |
| MLZ026* | 3,060 | 3,860 | 4,810 | 5,940 | 7,280 | 8,860 | 10690 | 12,810 | 5,410 | 2.90 | 1.86 | 67 |
| MLZ030* | 3,700 | 4,700 | 5,870 | 7,260 | 8,890 | 10,790 | 12980 | 15,490 | 6,600 | 3.35 | 1.97 | 70 |
| MLZ038* | 4,500 | 5,680 | 7,060 | 8,690 | 10,600 | 12,810 | 15370 | 18,280 | 7,880 | 3.86 | 2.05 | 71 |
| MLZ045* | 5,350 | 6,810 | 8,540 | 10,570 | 12,950 | 15,710 | 18890 | 22,530 | 9,560 | 4.89 | 1.95 | 71 |
| MLZ048* | 5,810 | 7,460 | 9,380 | 11,610 | 14,190 | 17,160 | 20560 | 24,420 | 10,490 | 5.38 | 1.95 | 72 |
| MLZ058* | 6,450 | 8,450 | 10,750 | 13,410 | 16,460 | 19,960 | 23940 | 28,430 | 12,110 | 6.08 | 1.99 | 74 |
| MLZ066* | 7,640 | 9,850 | 12,450 | 15,530 | 19,130 | 23,320 | 28150 | 33,680 | 14,060 | 7.01 | 2.01 | 74 |
